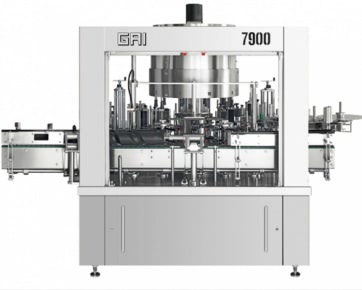

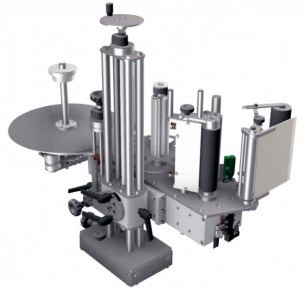

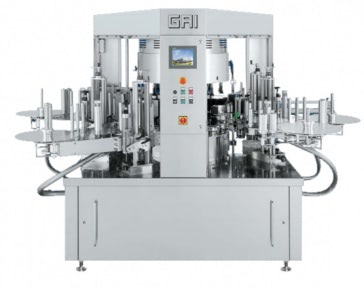

Automatic monobloc in stainless steel.[1] 6 Revolving automatic labeller, Øp 540 mm in stainless steel for auto-adhesive labels composed of:• Inlet gate regulating bottle flow.• Bottle synchronising infeed screw.• Press-bottle heads with cam lifting and spring pressure.• Turret electrical height adjustment.• Body label station in stainless steel, with step-step motor, support for vertical, horizontal and angle adjustment. Position is marked on numeric indicators.• Back label station in stainless steel with same features• Labelling stations centrally managed through main control panel with colours display touch screen.• Safety guards in accordance with CE Standards.• Machine to be installed in-line, equipped for one kind of cylindrical bottle.• Only for mechanic version plates with rotation caused by stainless steel cam.• Only for electronic version, centralized plates management (electronic cam) with touch screen. Speed 1.500-4.500 bottles/hour INVERTER

TECHNICAL FEATURES- Default machine has left to right bottle flow.- For 7400/M (only mechanic version) labelling cam for 2 labels and 1 back label- For 7540/M (only mechanic version) labelling cam for 2 label and 2 back labels- Label roll: internal diameter 76 mm, maximum external diameter 400 mm- 4 Maximum label width 200 mm- Paper passage 190 mm and blade 190mm- Label application tolerance ± 1 mm- Labels height from bottle bottom from 10 to 270mm- Bottles diameter from 60 to 115mm- Bottle height from 170 to 400 mm- Taper: maximum taper towards top 45°- Taper: maximum taper towards bottom 7°- Photocell and warning device for end of label roll on every station

OPTIONALS-Right-to-left bottle flow-Additional labelling station-Screw, stars, central guide (and plates) for shaped bottles-Device to allow work with continuous flow of bottles-Device to stop machine in case of bottle store up-Thermal transfer printer-Extra band for label stretching at bottle exit from machine

ELECTRONIC OPTIONALS-Plates with centring and expelling device (See ELECTRONICAL PLATES section)-Plates for bottom mark search (See ELECTRONICAL PLATES section)-Spot search photocell on capsule (See ELECTRONICAL LABELLERS section)-Running search system valid only for 7540 (See ELECTRONICAL LABELLERS section)
Manufacturer:GAI S.p.A.
Model:7540/6E
Code:GAI-7540/6E-R0
Category:AUTOMATIC ROTATIVE LABELLER ELECTRONIC DRIVEN
