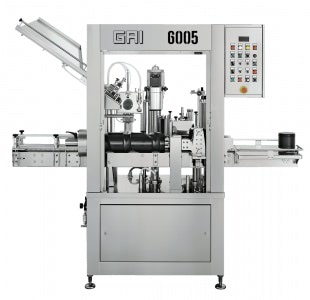

Automatic monobloc Label Only 2 Stations in stainless steel composed of:
[1] Linear labeller suitable for self-adhesive labels with:

- body label station with step motor and height adjustment
- back-label station with step motor and height adjustment
- labelling managed through potentiometers for body and back label centering

Note: On 6005W monobloc is not possible to install the neck label station.
Centralized handling of monobloc and labelling stations with PLC and operation terminal touch screen 5,7"" (handling of labelling stations with potentiometer).Bottles enters by infeed screw having variable step for cap supplier and sleeker.Machine supplied with security guards in accordance with CE standards. Equipped for one type of cylindrical bottle
Maximum Speed: 2.000 bottles/hour
Machine supplied with 0,3Hp carrier and 500 mm plate
TECHNICAL FEATURES:

- Labels up to a max. of 300 mm on cylindrical bottles
- Paper passage 190 mm and blade 190 mm
- Label application tolerance ± 1 mm (on cylindrical bottles)
- Maximum number of label dispensing stations 2
- Label roll with inside diameter 76 mm and outside diameter 280 mm
- Height adjustable stations, between 10 and 150 mm from the bottom of the bottle
- Possible installation of a thermal transfer printer
- Possible mechanical orientation (bottle mark search)
- Possible optical orientation
- Suitable for cylindrical or tapered bottles, maximum taper 1,5°
- Bottle diameter from 60 to 115 mm (optional from 50 to 60 mm)
- Bottle height from 230 to 400 mm with caps dispenser
- Bottle height from 170 to 400 mm only labelling

THIS MACHINE IS WITHOUT:
[4601-400] Sleeking head with lifting device and inverter[4601-4300] Head movement column[4603D-408] Slanted capsules dispenser
Manufacturer:GAI S.p.A.
Model:6005W  LO2S
Code:GAI-6005WLO2S-R0
Category:DISTRIBUTION - CAPSULING - LINEAR LABELLING AUTOMATIC MONOBLOCKS
