Filtro Tangencial

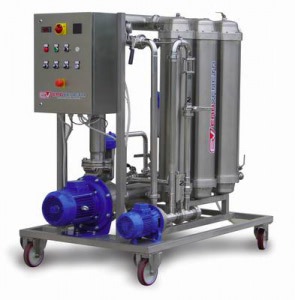

The cross-flow filter FTG fully replaces traditional fining systems (centrifugation, filtration with diatomaceous earth filtration layer) obtaining products with turbidity less than 1 NTU in a? Unique workmanship.
The FTG-flow filter is equipped with organic membranes in polypropylene hollow fiber with an average porosity of 0.2 micron nominal; therefore unable to yeasts, bacteria and colloids condensed, leaving unchanged the basic parameters totally retain the suspended solids, for the quality of wines.
L? Filterability index of the treated wine is remarkably lowered thereby increasing the life of the cartridges for the final absolute filtration. The FTG filter is in automatic operation for the operations of the filtration cycle including back-wash, while the operations of filling, discharge and washing are managed on the operator.

In option it is also available a fully automated version from FTG 2 model.

ADVANTAGES OF THE FILTER BYPASS FTG

Certainty of outcome
Obtaining brilliant wines free from microorganisms (turbidity index of less than 1 NTU), with excellent filterability index.
isobaric construction (operation up to 6 bar).
of more than 99.5% filtration efficiency.
Elimination of? Use of filter aids and then the obligations arising from their disposal.
Low energy consumption and minimum sound impact.
negligible temperature rise.
Automatic filtration cycle arrest at the end of processing.
Maximum simplicity and speed of execution of washing and rinsing cycles
